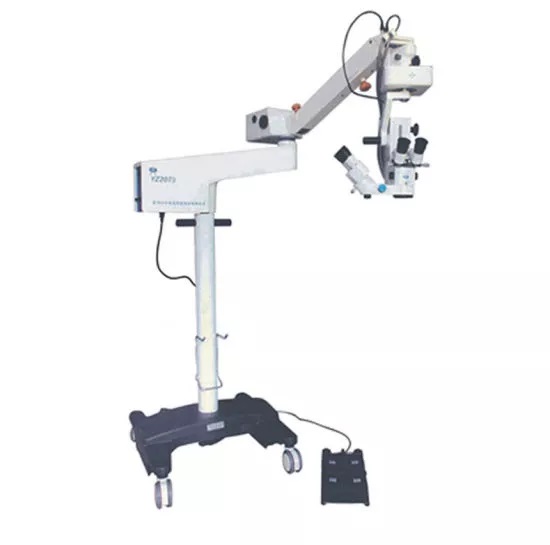

Medop YZ-20T9 Operation Microscope

(multi-function)

Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472

Description

Click here to view the pdf catalogue



The product is a double binocular operation microscope designed for two men. It has excellent optical performance and it is comfortable to be used.


Characteristics:

Advanced apochromatic technology and unique optical balanced technology effectively improves the binocular visual fusions, strengthenes in third dimension and reduces surgeon's tireness during operations.

Fine focusing knob is under the bottom of assistant binocular. The observation of the assistant's microscope can be finely focused independently of the main microscope to avoid different observation from surgeons.

20° Oblique illumination can also be used as slit illumination. Slit width is continuously adjustable.

For ophthalmic use



Technical Data

Eyepiece Magnification 12.5×/18B
Objective Lens f=200
Working Distance 190mm
Magnifications for Main Microscope 4×,6×,10×,16×,25×
Magnifications for Assistant Microscope 6×,10×,14×
Diameter of Field 58mm,38mm,23mm,14mm,9mm
Diopter Adjustment ±7D
Pupil Distance 50mm~75mm
Maximal Resolution 119 LP/mm
Focusing Range for Assistant Microscope ≥30mm
Illumination Source 12V/100W,Cold Reflection Halogen Bulb for Medical Use
Illumination Type 6°+0°coaxial illumination of cold light source and 20°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable
Coaxial Illumination ≥50000lx
Oblique Illumination ≥45000lx
Reaching Radius of Arm 1240mm
Adjustable Vertical Range 850mm~1350mm
Fine Focusing Speed and Range ≤2mm/s,≥50mm
Speed for X/Y and Range ≤2mm/s,50mm×50mm
Input Voltage AC220V±22V/50Hz±1Hz,AC110V±11V/60Hz±1Hz
Power 330VA
Fuse AC250V T4.0A,AC125V T8.0A
Electrical Safety Standard Executive standard :GB9706.1-2007,Class I
Packing Volume 0.786m3,5cartons
Total Weight 213kg
