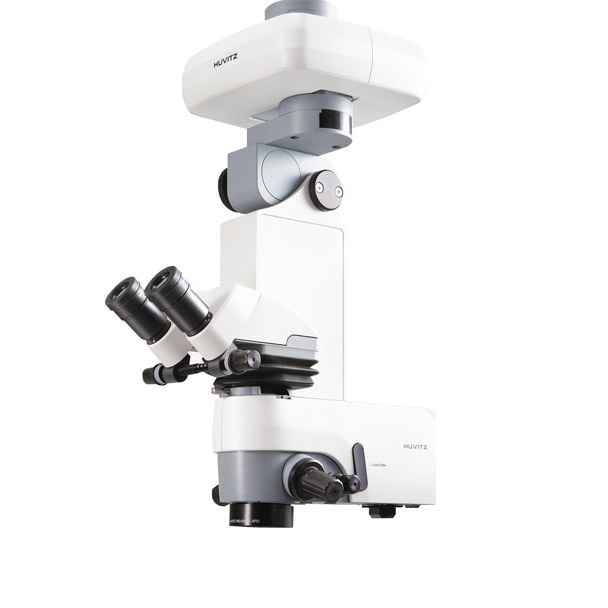

Huvitz HOM-700 Operation Microscope
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Expand Your Vision with Precision Engineering
Click here to view the pdf catalogue
Innovative optical technology from Huvitz enhanced by industry experience in manufacturing and vision science solutions.
Ophthalmic surgeons will appreciate the intuitive and high performance optical systems now available for theatre use.
High Performance, High Quality Optical System
The latest enhanced and up-to-date Huvitz optical system provides ophthalmic surgeons with high-resolution, outstanding color reproduction and low distortion images for precise diagnosis and operation.
HOM-7000 is the optimum selection in your surgery.
Ergonomic design supports every surgeon's desire for perfection.
HOM-700 incorporates workflow-conducive features that reduce preparation time for users before each surgical case. Surgeons can easily maneuvere it in the clinical environment increasing efficiency and optimising theatre time.
All microscope functions are easily and quickly accessable via an intuitive user interface through a large, HD touchscreen monitor including patient data, pre-configured surgeon settings and video recording.
More than any other surgical microscope system, HOM-700 streamlines all surgical workflow and maximizes surgery efficiency.
Stable Suspension Stand
Provides the surgeon with flexible movement to the desired location and unwavering stability for precise and reliable operations.
High Performance beyond Expectations
HOM-700 is specifically conceived and designed for even the most demanding microsurgical applications. Extended system ergonomics and functions provide increased convenience, streamlining the surgical
workflow.
All relevant functions are combined into a cohesive system that can be controlled from the intuitive user interface.
Smooth system handling and superior performance in the unequaled quality of the optical system, high resolution image and enhanced ergonomics improve comfort and performance.
Optimized Halogen-Illumination System
The 70mm/12V/50W illumination design reduces shadowing in deep cavities and provides homogeneous and high quality illumination on the site of surgery.
Its outstanding retina refraction proves its worth during hightempo surgery.
The anti-IR and UV blocking filter built into the illumination system prevents excessive heat and UV transmission for safe ophthalmic surgery.
High Resolution Optical System
The state of the art optic system of HOM-700 offers surgeons comfortable observations by the outermost visual field(F.N 21mm) as its standard feature.
Clear images even in low-intensity illumination enables by sharp, crisp, high-resolution 3D observation provide an enhanced observation experience to surgeons.
Fine adjustment of the precision motorised zoom system is reliably and quickly achieved to present the desired magnification effortlessly.
Advanced Color Reproduction
The apochromatic lens system deveolped by Huvutz allows surgeons the confidence to know they will not miss a single segment.
Optimized Red Reflex
The instant and perfectly stable red reflex from the illuminator providing the optimum brightness and observation angle. It implements high color contrast and resolution to present surgeons with a flawless surgical and clinical environment.
User-friendly Lamp Replacement
Spare lamps are always on stand-by to prevent any interruption in procedure. Surgeons can easily switch and immediately replace a lamp without any mechanical difficulty.
Fatigue-free Surgery
The 10x21mm visual field of the eyepiece relieves surgeons eyestrain enabling extended operational periods without fatigue or concentration loss.
Ergonomic Tilting Observation Tube (Optional)
5~35 degree tilting optical head helps surgeons to remain comfortable even during extended surgical procedures.
Specifications
| Microscope | Magnification changer | Zoom 6:1, motor-driven: variable speed |
|---|---|---|
| Objectives | APO WD=200mm | |
| PD adjustment | Knob adjustment | |
| Observation tube | Binocular tube 0°~35° tilt | |
| Eyepieces | for eyeglass wearers 10x/21mm | |
| Total magnification | 3.1x(min)~18.7(max)x | |
| Field of view dia. | 68.0mm(max)-11.1(min)mm | |
| Illumination | 2 halogen lamps, 12V/50W, 6° illumination blockable, IR protective filter fixed, GG420 UV protective filter fixed, GG475 UV protective filter switchable (optional) 2 slots for optional 32mm dia. Filters |
|
| Beam splitter (optional) | 80% / 20% or 50% / 50% observation | |
| Swing Arm | Maximum load | 5.0kg accessories |
| Maximum reach | Approx. 1,430mm | |
| Minimum transport height | Approx. 1,929mm | |
| Arm brakes | 3 mechanical articulation brakes with brake knob, 1 locking lever for vertical movement | |
| Lift | Approx. 595mm | |
| Balancing | Via gas spring | |
| Turning range | Axis 1 (near column): No stop, Axis 2 (in the middle): +180 /–135°, Axis 3 (over X,Y unit): +180/–155° | |
| Tilt | ±5° manual fine adjustment | |
| Base | Dimension | Approx. 590 x 590mm, 4 movable rollers, 1 foot brakes, Castors (4 x Ø100mm) |
| Display Panel | Display | 7inch Color TFT-LCD, 800 x 480 RGB (touch screen) |
| Footswitch / Hand switch | 12-function footswitch with longitudinal or lateral pedals, Optional: 6- and 16-function footswitch | |
| Camera(Optional) | ImageSensor | 1/3 CMOS Image Sensor |
| Scanning System | Progressive Scan | |
| Digital Resolution | HD-SDI,/3G-SDI 1920x1080p(50, 60fps, 25, 30fps, 1080i) 1280x720p(25, 30fps) HDMI 1.4 |
|
| Rense Standard | C-Mount, CS-Mount | |
| Electric Shutter | AUTO/MANUAL(1/30(25)~1/30,000sec) | |
| AWB | AUTO/MANUAL(3000, 5000, 8000k, R-Gain, B-Gain) | |
| BacklightCompensation | BLC(off/on) | |
| Mirror Image | Mirror, Flip(on/off) | |
| Digital Zoom | Yes | |
| Power | DC12V 1.0A | |
| Weight | 200g |
