Huvitz HFR-8000X Frame Reader
Dynamic speed and precision in your business!
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Description

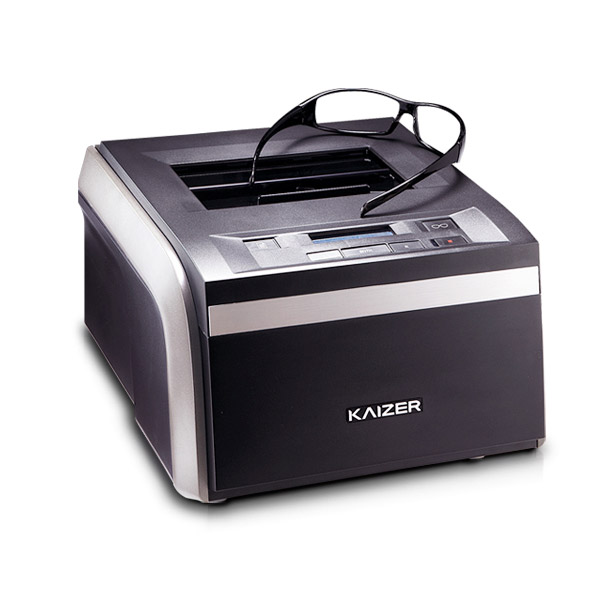

The KAIZER HFR-8000X Frame Reader!
Click here to view the pdf catalogue
Precise scanning of all metal and plastic frames.
Binocular and monocular tracing are both available to meet users' accuracy and efficiency needs
Accurate tracing of high-curve frames with unique HUVITZ mechatronic technology
Accurate scanning for concave shape, sharp edge, and narrow frame is very easy!
Specifications
| Tracing Type | Automatic 3D binocular tracing |
|---|---|
| Tracing Mode | Auto, Semi-auto (Manual tip-positioning) |
| Tracing Size | Frame ø16.0~92.0mm, Pattern ø16.0~84.0mm |
| Frame Material | Metal, Hard plastic, Soft plastic, Ultem |
| Data Processing | FPD, Frame curve, Circumference, 3D angle, Concave shape (Demo lens) |
| Dimensions / Weight | 248(W) x 320(D) x 190(H)mm / 8kg |
| Power Supply | AC 100-240V 50/60Hz |
| Power Consumption | 32W |
