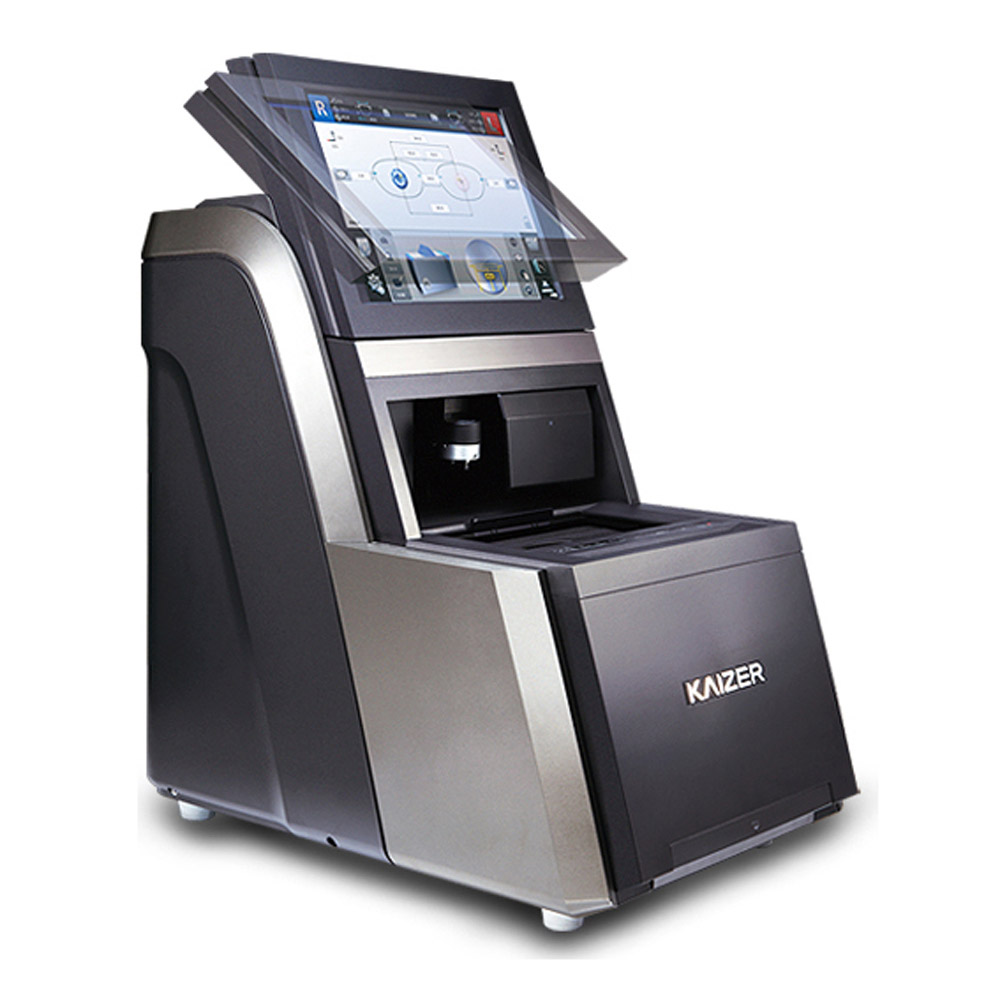

Huvitz HDM-8000 Kaizer Drilling Machine
KAIZER HDM-8000, in your hands, the best timesaving
solution to increase your profitability!
solution to increase your profitability!
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Description
Faster drilling
Click here to view the pdf catalogue
In your hands, the best time-saving solution to increase your profitability!
Simultaneous lens edging, blocking & drilling through multitasking
• Dividable structure adoption to separately process a hole while a lens edges.
Excellent hole processing for all kinds of high curve lenses
• 0~30°drill bit assembly tilting for Hi-Curve processing
• Scan & Cut to implement and process various image designs
Specifications
| Hole Type | Hole, Slot, Notch |
|---|---|
| Hole Size | ø1.00~10.00mm |
| Frame Material | Metal, Hard Plastic, Soft Plastic |
| Tilting Scope | Automatic, Manual (0~30°) |
| Hole Depth | Max 6.0mm (0.0mm = Through Hole) |
| Slot Width | 1.00mm ~ 4.00mm |
| Slot length | Max 20.00mm |
| Dimensions / Weight | 193(W) x 483(D) x 342(H)mm / 14kg |
| Power Supply | 100 – 240V, 50 / 60Hz |
| Power Consumption | 100W |
