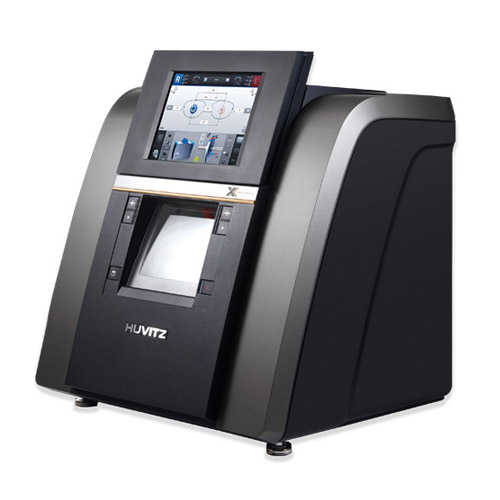

Huvitz HPE-910 Kaizer XX Edger
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Expand the possibility with Step Bevel functionality
Click here to view the pdf catalogue
Click here to view the benefit guide
Click here to view the specifications
Click here to view network solutions
80 Seconds
80 seconds to cut the frame with KAIZER XX. KAIZER XX has enhanced not only its high speed, but also its stability
35 Styles of Step-Bevel
KAIZER XX supports almost all of frame types with the combination of 7 different step bevel types and 5 edge styles. For example, full or partial, front or rear, bevel top or grooved top, and etc.
2X Built-in Drill Solution
Built-in Driller reduces processing time by 50%. Enjoy the reduced processing time, greater diversity and advanced scalability.
Smarter Performance
Easier to process any kinds of jobs, including complex and difficult ones. Smarter algorithm, automatic recognition, intuitive GUI, compatibility, even with crystal clear polishing.
Videos
Comparison Video
Specifications
| Lens Material | Plastic, Polycarbonate, High index plastic, Glass, Trivex |
|---|---|
| Edging Type | Bevel, Groove, Rimless, Mini bevel, Partial bevel, Partial groove, Dual groove, Hybrid groove, Asymmetric bevel, Semi-U bevel, Step bevel* |
| Edging Position | Front %, Front mm, Rear mm, Base curve, Auto, Manual (with 2D simulation and 3D preview) |
| Edging Options | Polishing, Saftety bevel, Safety mode |
| Built-in Drilling** | Hole, Slot, Notch, Scan & Cut shape, Chemistrie Clip |
| Functions | Job manager, Digital pattern, Hole editor, Asymmetric bevel editor, Scan & Cut shape editor, Step bevel editor, OMA import/export, CAD export, DCS/OMA compatibility, Retouch mode (Normal, Drill-only, All) |
| Utilities | LCD tilting Automatic edging room door Edging room illumination SD card storage (Memory card included) Barcode reader interface, Vacuum interface |
| Edging Size | Max. 90mm Min. flat edging : 18.5mm (without safety bevel) Min. bevel edging : 20mm (without safety bevel) |
| Display | 9.7”color TFT LCD(1024x768) with touch screen |
| Dimensions / Weight | 540(W) x 472(D) x 580(H)mm 51.2kg (110V), 50.2kg (220V) |
| Power Supply | AC 100–120V / AC 220–240V 50/60Hz |
| Power Consumption | 1400VA |
| * 'N' type doesn't support step beveling. ** 'X' and 'N' types don't support built-in drilling. Designs and details can be changed without prior notice for improvements. |
|
