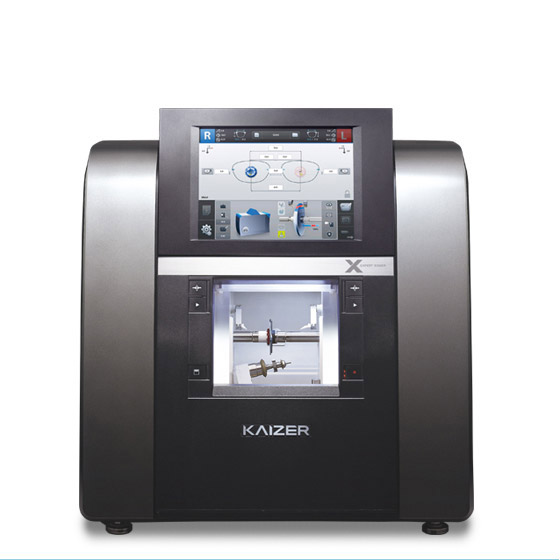

Huvitz HPE-8000X Kaizer X Edger
the most charismatic king of the kings
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Expand the possibility with Step Bevel functionality
Click here to view the pdf catalogue
Click here to view the pdf benefit guide
Process lenses for high curve goggles and sports sunglasses and eliminate outsourcing or manual handling. The KAIZER-X offers breakthrough technology in a premium edger through powerful functionality,
exquisite fit and numerous conveniences.
More advanced features for the perfect fit
• High Curve function in order to process sports goggles and sunglasses Step Bevel function (maximum lens curve 6.00, maximum depth 6mm)
• Adjustable asymmetric bevel which raises the level of consistency between the frame curve and processed edge of lenses Semi-U process function
• Adaptive Clamp Chuck prevents axis slippage, shape distortion and delamination of polarized lenses.
Feature packed and highly detailed custom bevel
• Mini Bevel adjusts the height of the bevel apex eliminating unsightly bevel reflection on frames with a shallow eyewire (Min. 0.1mm~Max. 0.8mm)
• Partial grooving function makes it possible to place a desired size groove in a designated section of the lens
• Hybrid Grooving offers the ability to place different finishes from section to section on a lens such as cutting a groove and a bevel
Faster Processing
• Bidirectional feelers of improved configuration are more durable and simultaneous feeling of front and back sides reduces lens thickness recognition time by maximum 50%
• High-end motor and platform reduces the process time at an average of 20% compared to other models
• Servomotor with more than 1 horsepower offers speedy lens processing
• 1GHz High Performance CPU controlling the next process Unparalleled expandability and functionality
• Scan & Cut function makes it possible to scan and cut a designated image
(HAB-8000, HDM-8000 Combination)
• OMA compliancy eliminates without wasted time
• Processes even concave shape on lenses within a range of wheel curvature
• Easy Click (Chemestrie Clips) function for processing detachable magnetic overlays for plano fashion sunglass lenses or custom prescription applications.
Specifications
| Lens Material | Plastic, Polycarbonate, High index plastic, Glass, Trivex |
|---|---|
| Wheel | Diameter 125mm RPGA-X(220V) / RPGA-XN(220V) / RPA-X(110V) / RPA-XN(110V) * XN type is impossible to the Step Beveling |
| Edging Mode | Beveling (Normal / Auto / Manual Mode, Asymmetric, Semi-U, Mini,) Grooving (Normal / Auto / Manual Mode, Partial / Hybrid / Dual Grooving Option) Flat Edging Safety Beveling Polishing Variable Asymmetric & Semi-U Beveling Step Bevelimg(T Bevel / Bevel Step / Step) * Optinal functions not supported by XN type. |
| Functions | Job Manager Digital Pattern Hole Editor Retouch Bevel / Groove Simulation Shape Mirroring Easy Click Concave Shape Scan & Cut |
| Utilities | LCD Tilting Automatic Edging Room Door Edging Room illumination Simultaneous Bilateral feeling SD Card Storage (Memory Included) Barcode Reader (Optional) Vacuum Interface |
| Display | 9.7 inch Color TFT LCD (1024 x 768) with Touch Screen |
| Edging Size | Max : 90 mm Min : Flat Edging : 18.5 mm (without Safety Bevel) Min : Bevel Edging : 20 mm (without Safety Bevel) |
| Dimensions | 540(W) x 472(D) x 580(H) mm |
| Weight | 51 kg |
| Power Supply | AC 100~120V / AC 200~240V 50/60 Hz |
| Power Consumption | 1200W (110V), 1500W (220V) |
| Designs and details can be changed without prior notice for improvements. | |
