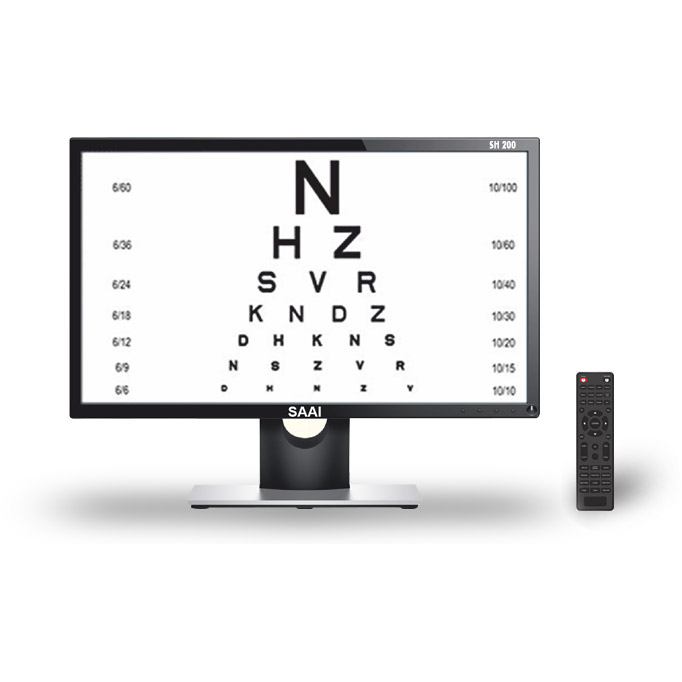

Saai SH 200 Vision Chart

Click here to view the pdf catalogue

Features

• 1% Contrast sensitivity adjustment for all optotypes
• Reverse mode for all charts
• Smart charts with random display function for all optotypes
• 2 Min. Speedy refraction using the 4 navigation keys
• 90+ Patient education charts for various eye diseases
• External USB port for viewing your own images and videos
• 40+ HD Patient education videos for educating the patients
• External 3.5mm audio jack for audio out
• Adaptable to smaller rooms with precise adjustment of distance
• Compensation for red green filter
• Feather touch remote control with direct commands for all tests
• No moving parts



Watch the operation video

Download video

Technical Specifications

LCD type : 22” LED Display
Luminance : 200 cd/m2
Remote Control : Infrared
Working Distance : 1.8m – 6.5m
Connections : Audio, USB
Power Requirements : 110-230 VAC, 50/60Hz
Power Consumption : 35W
Unit Weight : 4.2 Kg
Gross Weight : 4.4 Kg
Unit Dimensions : 52.5 * 33 * 6.5cm
packing Dimensions : 58.5 * 42 * 14 cm

Standard Tests

• Snellen
• Logmar
• Isihara (40 Plates)
• Maddox
• Worth Four Dots
• Astigmatism
• Contrast Sensitivity
• Duochrome
• Cross Cylinder



Display Modes

• Single Character
• Single line
• Single Column
• Black in White
• Multi Line
• H Mask
• V Mask



Optotypes

• Sloan Letters
• Numbers
• Tumbling E
• Landolt Rings
