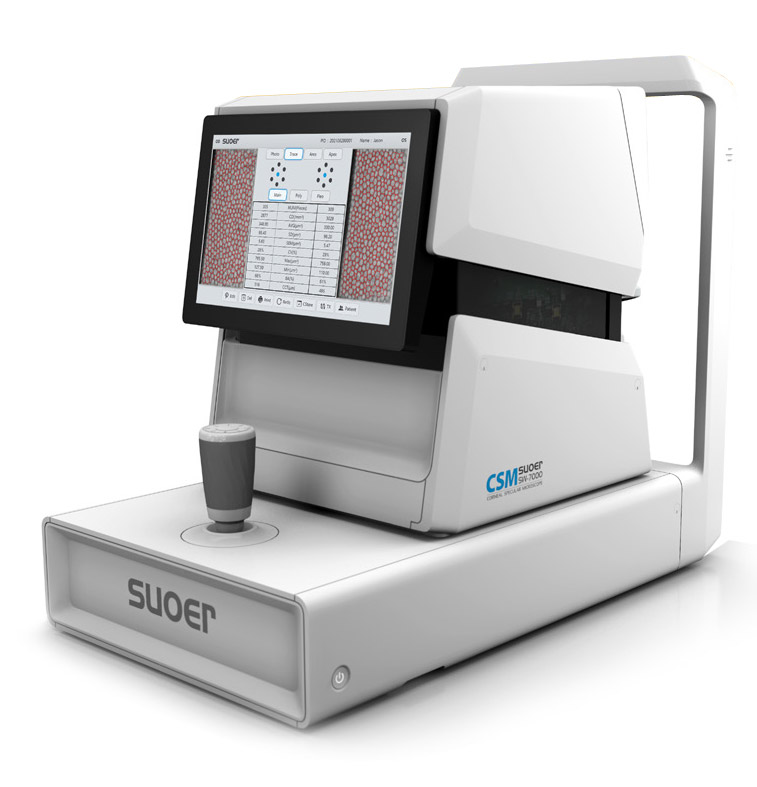

CSM Specular Microscope SW-7000

Click here to view the pdf catalogue

Fully automatic. Fast measurement and analysis

Fully automatic working mode:
Automatic pupil detection, automatic alignment, automatic shooting, automatic analysis.
Concise user interface, one-click operation experience.

Wide field of view & multiple measuring points

0.25mm x 0.55mm wide field endothelial cell imaging.
There are as many as 13 measuring points, including: central measuring point,
6 paraxial measuring points and 6 edge measuring points.

Precise focusing and high-speed imaging system

High-precision infrared focus module, the focal plane is precisely aligned with the inner surface of the cornea
The 125-frame high-speed imaging system can continuously shoot multiple images and automatically filter the best images.
The flash time is reduced to less than 1 second, which improves patient comfort.

Rapid automatic analysis function

After shooting, the system will automatically complete image analysis within 2 seconds and provide all measurement parameters.

Friendly user interface and simple operation

10.4 inch high resolution LCD touchscreen.
Retain traditional joystick to suit a variety of operators.

Manual analysis function

The analysis area can be selected independently, and the system will recalculate the main parameters according to the selected area.

Central corneal thickness measurement

The thickness of the central cornea is measured at the same time the image is taken.
(It will be done automatically when the center measurement point is selected)

Support multiple data transmission protocols

Support DICOM3.0

Large-capacity database

Built-in high-performance main frame.
Up to 1TB storage capacity.
Multi functional case management system allows convenient and efficient operation of medical records

Report printing

Support multiple printer types

Specification

Capturing method: non-contact
Capturing range: 0.25mm x 0.55mm
Capturing area: Center and 12 peripheral fixation points
Working mode: Full-auto/Semi-auto
Cornea thickness measurement range: 400μm ~ 750μm
Cornea thickness measurement accuracy:
±10μm（＜ 600μm）；±25μm（＞ 600μm）
Analysis parameter:
NUM（Number of cells）
CD（Cell density）
AVG（Average area）
SD（Standard deviation of area）
CV（Coefficient of Variation）
MAX（Maximum area）
MIN（Minimum area）
6A（Percentage of hexagonal cells）
Histogram: Area：Polymegathism（Distribution by areas）
Apex: Plemorphism（Distribution by shapes）
Display: 10.4” colored touchscreen（1080P）
Printing: Able to connect to most regular printing devices
Data output: USB x 2；LAN x 1；support DICOM 3.0
Dimensions and weight: 315 x 535 x 465mm；approx. 23Kg
Power source: 100V AC ~ 240V AC；50/60Hz；100VA
