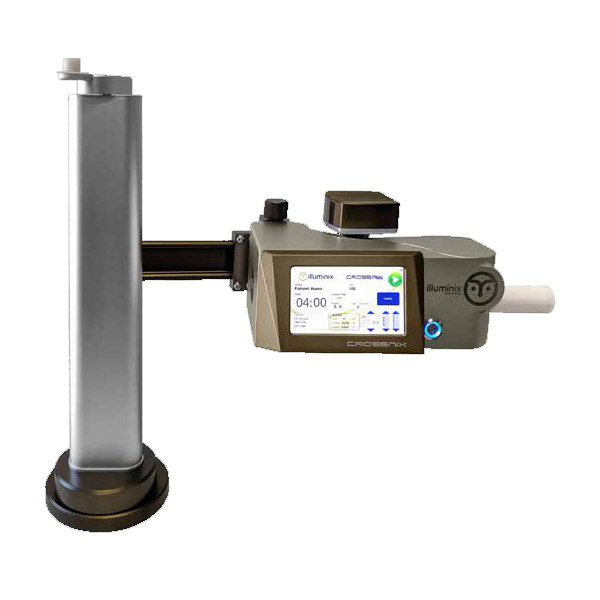

Crossnix

A NEW STANDARD OF TREATMENT FOR PROGRESSIVE KERATOCONUS

Click here to view the pdf catalogue

SYSTEM:

• UVA Wavelength: 365nm.
• UVA intensity: 3 / 6 / 9 / 18 / 22.5 mW/cm².
• Aiming bean Wavelenght: 635nm.
• Aiming bean intensity: < 2Mw.
• Background illumination: Cool White.
• Working distance: 50mm ± 5mm.
• Aperture spot: 4 / 6 / 8 /10mm automatic adjustment.
• Soaking times pause: 0 - 240 seconds.
• Connectivity: WiFi 802.11b/g/n.
• Screen: Touchscreen 5’’.
• Camera: HDMI FullHD that can record sessions in a SD Card.
• Electric power adapter input: 100/240 VAC / 50-60Hz.
• Electric power adapter output: 12 VDC/2A.

PROTOCOLS:

• 30 minutes / Power: 3 mW/cm² / Total energy: 5400mJ
• 15 minutes / Power: 6 mW/cm² / Total energy: 5400mJ
• 10 minutes / Power: 9 mW/cm² / Total energy: 5400mJ
• 5 minutes / Power: 18 mW/cm² / Total energy: 5400mJ
• 4 minutes / Power: 22.5 mW/cm² / Total energy: 5400mJ

FEATURES:

• 365nm of UV light (UVA).
• Protocols of 4, 5, 10, 15 or 30 minutes with all 5400mJ of total energy.
• Soaking timer pauses from 0 to 240 seconds.
• Touchscreen 5’’ Resistive.
• Fixation stand from table or floor.
