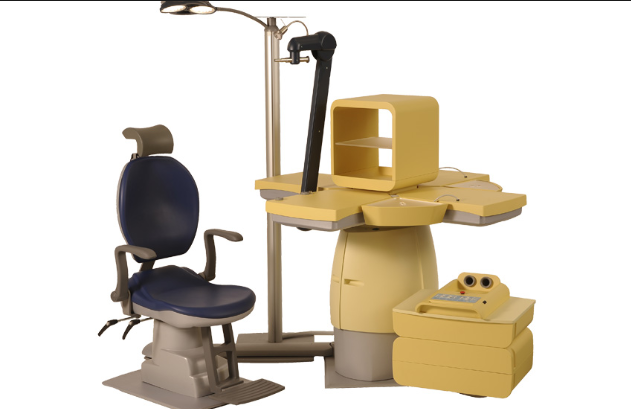

MeccanotticaMazza Ophthalmic Unit 10.600.00

Refraction unit with automatic rotary table for 4 instruments and automatic working position - electric up/down table movement - 4 different control panel consoles with digital keyboard: "compact" no drawer (code 10.600.00), "elegance" with 1 drawer and trial lens tray (code 10.600.01), "highline" with 3 drawers and trial lens tray (code 10.600.03) and "mix" with 1 drawer, trial lens tray and open compartment (code 10.600.05). Column with adjustable LED lamp and projector support. Patient chair with electric up/down and antero/posterior movement. Special system for patient chair rotation (code 15.600.40) or special base plate with locking castors for patient chair lateral movement (code 25.000.60).

TECHNICAL DATA• Power supply 230Vac 50Hz - (230Vac 60Hz - 110Vac 60Hz)
• Power consumption 700VA
• Auxiliary outputs 230Vac 50Hz/60Hz max 100VA (110Vac - 60Hz)
• Working table voltage nr. 4 - 12Vac max 60VA / 230Vac 50Hz/60Hz max 100VA 110Vac 60Hz max 100VA
