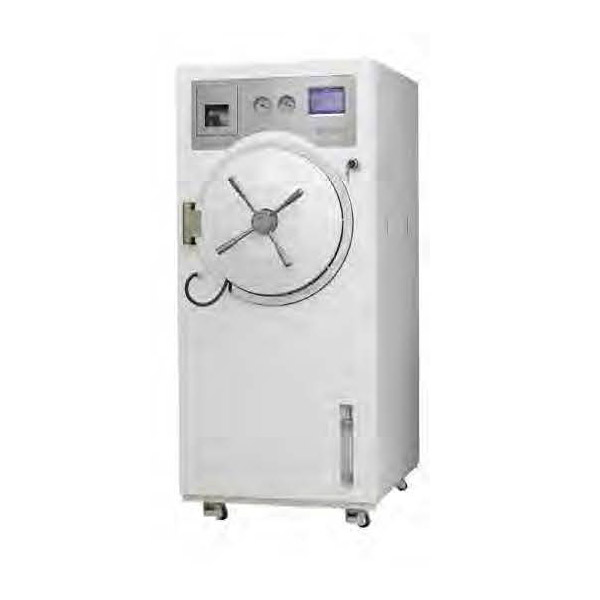

Shinva XG1.C Steam Sterilizer

Click here to view the pdf catalogue

Introduction

It is applicable for the sterilization of unpacked solid instrument in department of stomatology, ophthalmology, operation room and CSSD.

Product features

• Touch screen display of temperature, pressure, time, running status and failure warning.
• Equipped with professional and systematized sterilizing programs of fabric. instrument, rubber and liquid.
• The positive pressure air-discharging system will effectively discharge the cold air from chamber to improve steam saturability.
• Built-ln efficient steam generator, microcomputer temperature control, time and energy saving.
• Equipped with post-drying function which makes the residual humidity of sterilized articles less than 3%.
• Equipped with printer to print date. time and process parameters.
• Over-heat auto protection device, dual door safety lock device, overpressure relief valve, short-circuit protection and overpressure protection.
• Perfect four-level authority management system to avoid misoperation.

Technical parameters

Design pressure: 0.25MPa
Maximum working pressure: 0.23MPa
Sterilizing temperature: 105-136 C
Chamber material: 06Cr19Ni10 stainless steel (304)
Accuracy of temperature display: 0.1 C
Accuracy of pressure display: 1 Kpa
