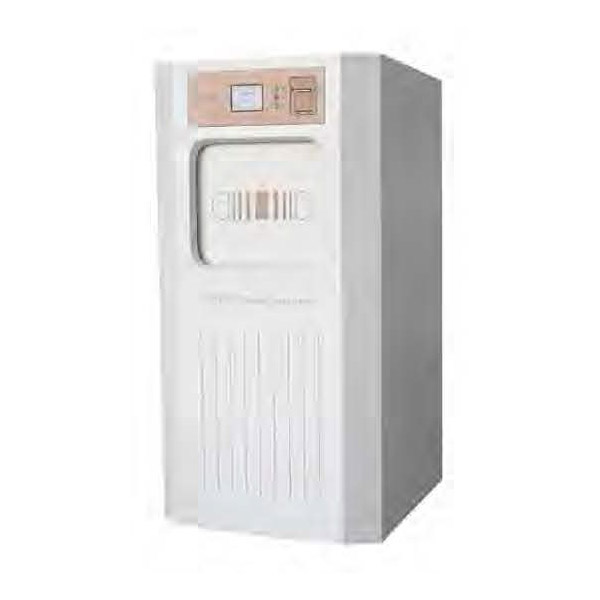

Shinva 100% Ethylene Oxide Gas Sterilizer

Click here to view the pdf catalogue

Introduction

XG2. C series sterilizer takes 100% ethylene oxide (EO) gas as sterilization medium. It Is mainly used to make sterilization for precise medical instrument, optical instrument, and medical electronic instrument. plastic and medical materials that cannot bear with high temperature and wet sterilization.

EO gas is one of the most efficient low temperature sterilization agents. It has advantage of wide-pedigree bacterium killing range, strong penetrability, no damage and pollution, Basy and reliable chemical and biological monitoring method.

Product features

• Negative pressure in whole cycle
  Chamber pressure is always negative rn whole cycle ensures EO gas no leakage to outside dunng working.
• Safety EO gas puncture device
  EO gas can automatically punctured by special device in the chamber, no need human Intervention.
• Chamber pressure real-time monitoring function:
  Any pressure abnormal in the chamber will cause the machine alarm.
• Efficient ventilation system
  Automatic pulse Vacuum ventilation ensures EO gas exhaust thoroughly.
• Door interlock
  The door cannot be opened While program is running.
• EO gas concentration monitor (optional)
  Accuracy: 0.1 PPM, portable design,
• Accurate parameter control
  Sterilization temperature, humidity, pressure and time data are collected by relative sensor and transferred to PLC.
• Perfect chamber temperature conducting
  Chamber is made of aluminum alloy which has good thermal conductivity makes chamber temperature conducting fast and uniformity.
• Dual sterilization temperature choices
  High temperature ss·c, Low temperature 37'C.
• Humidify control system
  Humidity sensor in high accuracy ensures chamber humidity keep in stable level.
• Power off memory function
  Once power off, the sterilization data will be saved automatically and will automatically continue the sterilization when power on.
