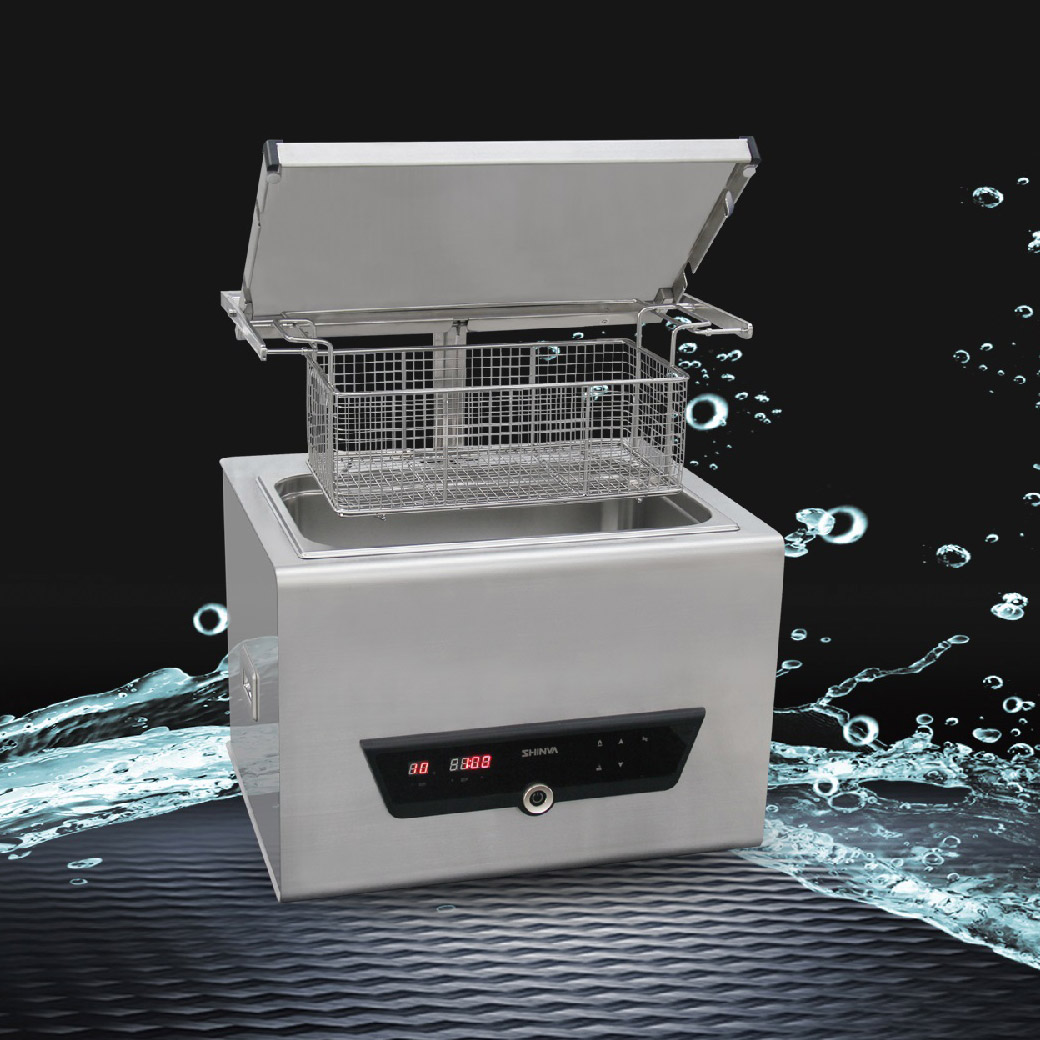

TQX Mini Ultrasonic Cleaner

Click here to view the pdf catalogue

Working Principle

Mini Ultrasonic Cleaner transforms the high-frequency oscillation signal issued by ultrasonic generator into high-frequency mechanical oscillation propagation through the transducer to spread the ultrasonic medium--cleaning solution. Ultrasound radiates in the solution of sparse and dense forward, so that the liquid flow and produce tens of thousands of tiny bubbles, these bubbles form and growth in the formation of ultrasonic longitudinal propagation of negative pressure zone, and rapid closure in the positive pressure zone, this process is called "cavitation" effect.

In this process, the bubble closure can form more than 1000 air pressure instant high pressure, continuous formation of high pressure is like a series of small "explosion" constantly impact the surface of the object, they work in all directions, attack and invade every groove and opening, so that the dirt in object surface and crevices quickly peeled off, so as to achieve the purpose of object surface cleaning.

Application

Shinva Mini Ultrasonic Cleaner is suitable for the cleaning process of surgical instruments in the departments of stomatology, ophthalmology, testing and operation rooms of hospitals, and also for the cleaning of some utensils and equipment in the laboratory field.

Features

• Fully-function: Adjustable time ultrasonic cleaning, adjustable temperature heating function
• Fully-specifications: 5 volume specifications from 5L to 30L , to meet the needs of various industries
• Processing technology: the main body using 304 stainless steel plate one-time stamping molding, no welding points, the operating panel using injection molding process, beautiful and stylish
• Safety protection: over-current, overload protection, anti-dry burn protection, anti-pinch protection (Auto-door models)
• Temperature detection: using PT100 temperature sensor, control temperature difference is less than 1 °C
