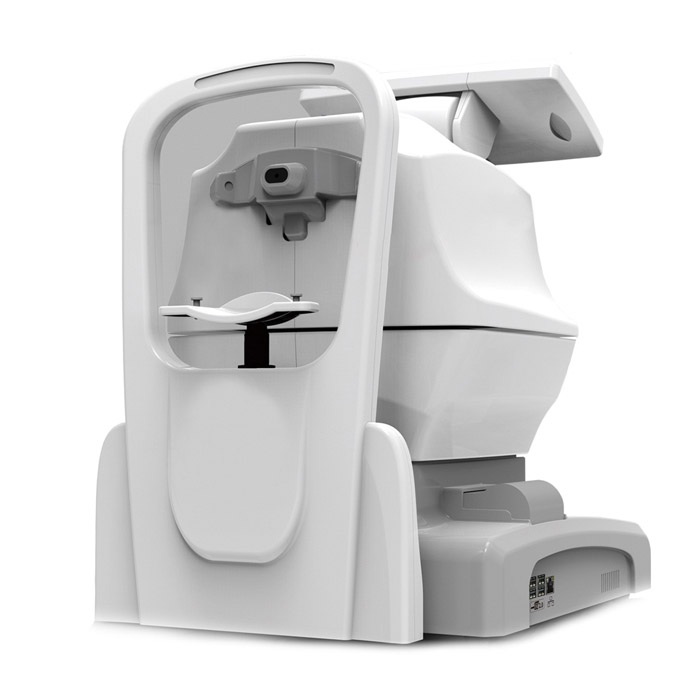

Medop ST-1000 Non-contact Tonometer
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Product features
Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness (ST-1000P).
Performance Features
Auto 3-D positioning of xyz results in precise and reliable measurement
Full-auto measurement for both right and left eye data without manual switch
Easy to operate the tonometer with color touch monitor
Stable data of IOP through soft air measurement
To compensate corneal thickness measurement of IOP
Specifications
| Basic Specifications | |
| Intraocular pressure (IOP) measuring range: | 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg) |
| Measuring system: | dual sensor system of light and pressure |
| Working distance: | ≥11mm |
| R/L: | automatic detection and display |
| Measuring result: | 10 times per eye; 3 times result printing per eye |
| Recording: | build-in printer |
| Measuring mode: | auto/manual |
| Focus: | when luminous spot is in the focus frame, 2 modes can be chosen. |
| Auto mode: | auto intraocular pressure measurement |
| manual mode: | when it's good focus, the frame will turn yellow into green, and click to start the measurement |
| Error indication: | if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ” |
| Safety limit button: | install measurement for minimum distance between head and patient |
| Safety functions: | the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head. |
| Movement range: | ≥30mm（front to back)/ 90mm(left to right)/ 30mm(vertical) |
| Jaw layer vertical movement: | 0~65mm with under jaw layer |
| Display mode: | 10.1-inch HDMI color LED touch monitor |
| Output port: | USB2.0 |
| Working platform: | electric elevating platform |
| Others | |
| Size: | 380 mm (L) x 460mm (W) x 505mm (H) |
| Weight: | 19.7kg |
| Power Supply: | 220V/50HZ |
Note：with development of technology, specifications and design are subject to change without notice.
