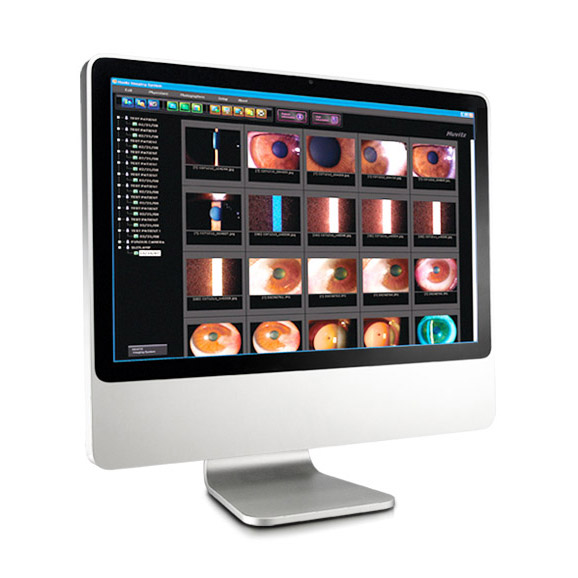

Huvitz HIS-5000 Imaging System
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
The complete kit of user-friendly image management system
Click here to view the pdf catalogue
PATIENT INFORMATION MANAGEMENT
MS Access Database system allows you to search symptoms, diagnosed information, and related contents. You can also easily manage data and history of patients.
INTUITIVE USER INTERFACE
Intuitive tree-structured user interface allows easy access to and updates of patient information without any complicated clicking.
DIGITAL CAMERA
The IEEE 1394 interface in the Huvitz camera system offers you a high mega pixel resolution images with increased speed and a more stable data transmission than a conventional USB port transmission.
QUICK IMAGE & VIDEO SAVING
High performance progressive scan CCD camera provides quick image capture of diagnosed images and videos in real time with a simple click on joystick button.
POWERFUL IMAGE PROCESSING
With Live Tool graphic library, all the images such as JPG, TIFF, RAW and many more formats can be adjusted for brightness, contrast, color channel, saturation, inversion, sharpness, red-free, etc.
IMAGE MANIPULATION FOR THE BEST DIAGNOSIS
Compare / The selected images can be magnified, reduced and rotated with various graphic effects for accurate comparison and diagnosis.
Overlay / Correlative animation of images captured in different time frames allows you to identify metastasis of symptoms.
Slide Show / All selected images can be shown in a slide show, which can be used for presentations.
Reference / Images of same symptoms can be registered or searched for further reference.
Report Generation / Automatic patients report export function in MS Word format.
Print / Easy single-click printing of current images.
SPECIFICATIONS
| DIGITAL CAMERA | |
|---|---|
| Image Sensor | 1/2” Interline CCD |
| Image Size | up to 1,388 x 1,036 pixels |
| Cell Size | 4.65μm x 4.65μm |
| Resolution Depth | 8bit or 12bit Raw RGB, YUV 4 : 2 : 2 |
| Transmit Method | IEEE 1394 (6pin) |
| Transmit Speed | 400Mbps |
| Frame Rate | 15fps, 7.5fps, 3.75fps |
| Lens Mount | C-Mount |
| Photographing | External Trigger or Software Trigger |
| Dimension | 44mm (W) x 29mm (H) x 63mm (D) |
| Power Consumption | 3W(12V DC, from IEEE 1394 Cable) |
| HIS-5000 | |
| CPU | Pentium IV, 2GHz |
| Memory | 512MB(over 1GB recommended) |
| Video card | ATI Radeon 9200(128MB) or similar |
| System |
|
| Transmit method |
|
| Monitor | LCD or CRT (minimum resolution 1,280 x1,024 pixels, over 1,600 x 1,200 pixels recommended) |
| Designs and details can be changed without prior notice for improvements. | |
