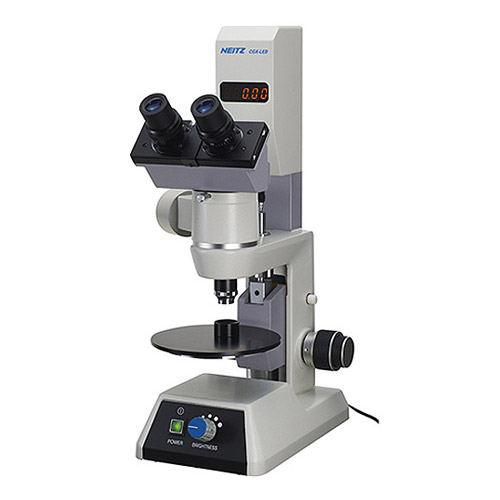

Neitz CGX-4 LED

Click here to view the pdf catalogue

 Click here to view the Neitz 2022/2023 catalogue

Neitz Unique Technology Made It Possible to Measure the Radius of Curvature in Increments of 0.01 mm

- The LED light source saves the trouble to replace bulbs
- The large display improves the visibility of the measurement values
- The radius of curvature of the contact lens can be measured in increments of 0.01mm

Contents

CGX-4LED, syringe, concave lens mount
convex lens mount
test ball (7.5R), eye shields (2 pcs)
dust cover, surface mirror
AC adaptor, power cable

Dimensions

175 mm x 240 mm x 420 mm

Weight

5.7 kg

Microscope

Type: binocular 45 degree inclination
Magnification: approx. 75 times
Pupil distance: 55 mm to 73 mm

Measuring gauge

Display: 4-digit LED display
Measurement range: 0 to 24 mm
Unit of measurement: 0.01 mm

Illuminator

Dimmer: 6 steps
Power source: AC 100 V 50/60 Hz 6 VA
