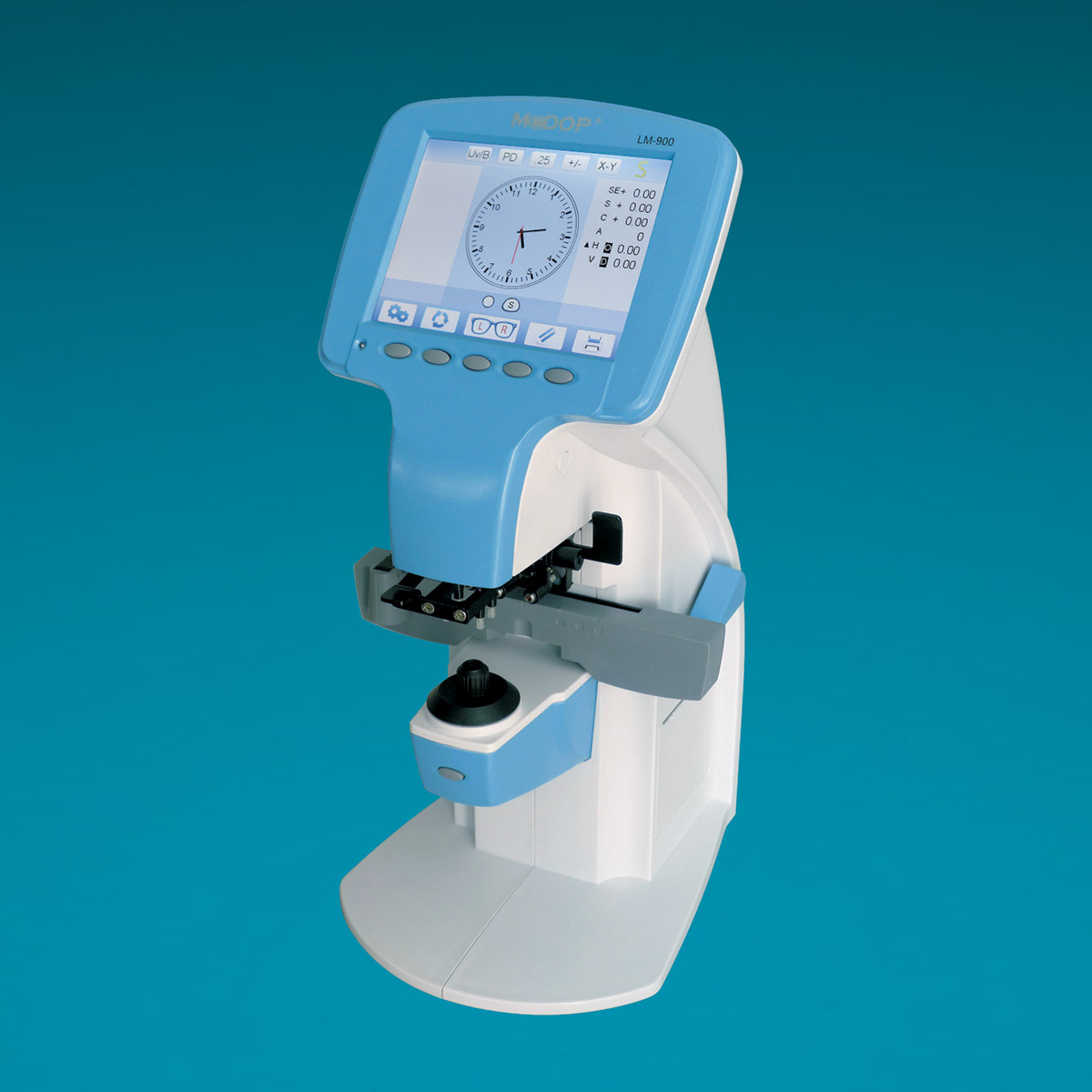

Medop LM-900 Auto Lensmeter

Click here to view the pdf catalogue

FEATURES

• Automatic recognition of single and progressive lens
• Hartman testing method, CPU high-speed precise computing
• Green LED light source, ABBE compensation no need
• Automatic identifying the lens type, automatic measurement, automatic reading and memorying the data
• 5.7 inch high resolving power LCD screen
• Broad contents, strong performances, simple and convenient operation
• Latest international designing concept of collecting technology, mode and individuality
• With PD, built-in printer and inner UV part.

ADVANTAGES

1. More functions
2. High speed(not simple speed only, that’s the image taking in, data transmitting, calculating and processing in synchrony and precision and high speed)
3. High precision(powerful software processing capacity, unparalleled house-in optical circuit structure designed)
4. High quality components, high standard, fine workmanship (three key standards: strict components purchasing, production controlling and testing)
5. Substantial, generous and integrated appearance designing
6. High stability(failure rate at 1% or so)

SPECIFICATIONS

Measuring Range
Sphere................0 to ±35D(0.01D, 0.06D, 0.12D, 0.25D steps)
Cylinder................0 to ±10D(0.01D,0.06D, 0.12D, 0.25D steps)
Axis...................................................................0-180°(1° steps)
ADD.....................0 to 10D (0.01D, 0.06D, 0.12D, 0.25D steps)
Prism........................................................0 to 15Δ(0.01Δ steps)

Mode
Cylinder........................................................................... +,+/-,-
Prism.........................X-Y: Cartesian Coordinates H:I,O. V:U,D
                                                              P-B: Polar Coordinates
                                                                  mm: mm expression
Reading resolving power...............0.01D, 0.06D, 0.12D, 0.25D
Contact lens....................................0 to ±25D, BC 6.00 to 9.00
Measuring mode.......single vision lens/bifocal lens/trifocal lens
                                                    progressive lens/contact lens

Others
Lens Diameter.................................................Φ20 to Φ100mm
PD....................................................40 to 90mm(0.5mm steps)
UV transmissivity test
Measurable transmissivity.........>10%; >20% at ±10D and over
Display..............................................................TFT LCD (5.7")
Printer.......................................................Built-in thermal print
Thermosensitive paper size............................................57mm
Product size....................................210(L)x190(W)x420(H)mm
Net weight........................................................................4Kgs
Power..............................AC220V/50HZ; AC110V/60Hz, 40VA
