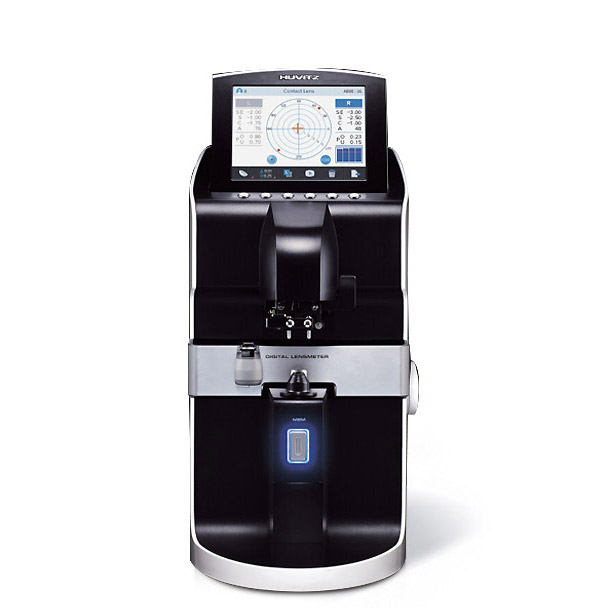

Huvitz HLM-7000P Digital Lensmeter
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Supreme precision can be compatible with great comfort
Click here to view the pdf catalogue
Wavefront Analysis Technology with the Hartmann Sensor
Providing more accuracy in the measured values utilizing the Hartmann Sensor Wavefront Analysis Technology with more measurement points than our previous generations.
Class B, Medical Equipment Certificate
HLM-7000P meets or exceeds this standard IEC60601-1(4th Edition) Class B
Expanded Prism Measurement Range
Prism measurement range has been expanded up to 20?, measuring from all directions of:BU, BD, BI, BO.
Wide Range for Measuring Small or Large (Blank) Lenses
It is easy to measure all lens diameters from Ø15mm to Ø120mm.
Easily Measures Sunglasses
While measuring the refractive power of darkly - tinted or mirrored sunglasses, the device will calculate the refractive power of the lens by automatically amplifying the amount of light without requiring any additional key strokes, the same way it measures normal lenses.
Incomparable UV Measurement Level Assessments
Few lensmeters provide UV assessments with the exact numerical value. Feel the difference and provide patients with the exact UV protection figure.
Newly Designed PD Bar and Measurement Nose
The newly designed PD Bar and Measurement Nose can measure small, progressive, or multi-focal glasses. In addition, the operator can still use the measurement nose when measuring the near sight addition.
Built-in Thermal Printer
Print paper can easily be changed with one-touch lever. Illustration of Axis & PD helps customers to understand the data better.
User-Friendly Graphical Interface
New bright and easily visible Graphical User Interface(GUI) that gives feedback and guidance for easy-to-use operation.
5.7” Color & High-Resolution IPS Panel(LCD)
The HLM-7000P screen also features an anti-glare coating giving you a sharp image, and also has a hardened coating to protect the screen from scratches.
Adjustable brightness function, for comfortable use in all room light conditions.
Progressive Measurement Now More Efficient
The advanced algorithm helps to automatically measure the far and near sight addition with improved accuracy and speed.
Specifications
| MEASUREMENT MODE | |
|---|---|
| Cylinder | -, +, ± |
| Prism | Rectangular / Polar / Displacement |
| Sampling Speed | 22fps |
| LED Wavelength | 525nm (Green) |
| Measurable Lens Diameter | 15~120mm |
| Contact Lense | Hard and Soft |
| ABBE Values | 30~60 (1Step) |
| Wavelength | e-Line, d-Line |
| MEASUREMENT RANGE | |
| Sphere Power | 0 ~±25.00D |
| Cylinder Power | 0 ~±10.00D |
| Cylinder Axis | 0°~ 180°(1°) |
| Add Power | 0 ~ 10D |
| Prism Power | 0 ~ 10Δ |
| INCREMENTS | |
| Diopter | 0.01 / 0.06 / 0.12 / 0.25D |
| Prism | 0.01 / 0.06 / 0.12 / 0.25Δ |
| DIMENSIONS | |
| Dimension | 190(W) x 237(D) x 377(H)mm / 5.5kg |
| Power Supply | AC 100-120V / AC 220-240V 50 / 60Hz |
| Display | Color LCD Display (640x480) |
| Baud Rate | 9,600 / 57,600 / 115,200bps |
| Data Output | RS-232C |
| Designs and details can be changed without prior notice for the purposes of improvement. | |
