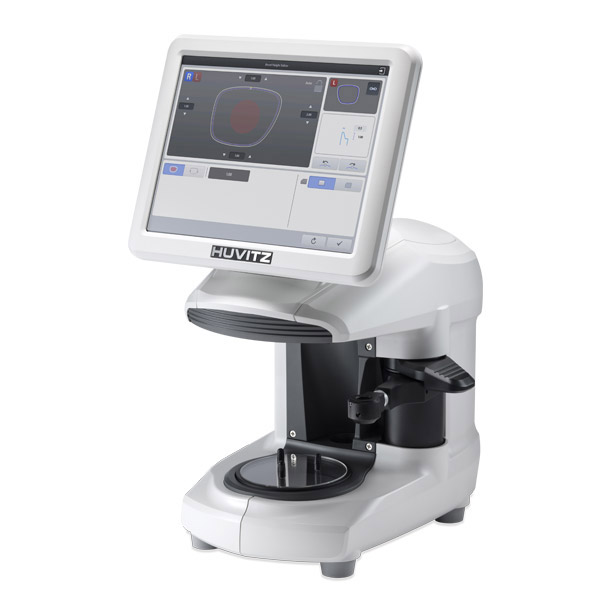

Huvitz HBK-410 Blocker
(White & Black colors are available)
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Description
The Excellent Smart Blocker – Perfect Duet with HPE-410
Click here to view the pdf catalogue
Smart Digital Scan
Digital scan recognizes frame shapes, drill holes and creative shapes. High resolution & sharp imaging capability help recognize laser markings.
Smart Arm
Blocking arm is loaded a leap block from upper side with easy and attaches the block by single push of the arm lever without rotating it.
Specifications
| Blocking Method | Manual (Push down) |
|---|---|
| Blocking Mode | Box center, Optical center |
| Blocking Guide | 3-Dot, Bi-focal, Progressive |
| Digital Scan | Frame shape, Hole/Slot/Notch, Scan & Cut shape |
| Blocking Assistance | Laser mark visualization, PD/OH live adjustment, Lens shortage check, Block attachment check, Auto Brightness control, Camera zoom |
| Blocking Tolerance | ±0.5mm |
| Axis Tolerance | ±1° |
| Layout Factors | FPD, PD(Binocular, Monocular), DBL, OH(Y, Boxed height, Mixed height), Centering Method(Box center, Optical center) |
| Edging Factors | Lens material(Plastic, Polycarbonate, High index, Glass, Trivex) Edging Type(Bevel, Groove, Flat, Mini bevel, Partial bevel, Partial grooving, Dual grooving, Hybrid grooving, Asymmetric bevel, Semi-U bevel, Step bevel) Edging Position(Front %, Front mm, Rear mm, Base curve, Auto, Manual) Edging Option(Polishing, Safety bevel, Safety mode) |
| Functions | Job Manager, Digital Pattern, Hole Editor, Asymmetric Bevel Editor, Step Bevel Editor, Scan & Cut Data Editor, Image File Converter, OMA Import/Export, CAD(dxf) Import/Export, R-L shape correction, Lens diameter measurement, Auto save & transmission of job files |
| Utilities | Tiltable LCD (Viewing angle 15~70°) SD card storage of 16GB(Support up to 32GB) Barcode reader interface |
| Display | Frame shape, Hole/Slot/Notch, Scan & Cut shape |
| Digital Scan | 9.7 inch Color TFT LCD (1024x768) with Touch Screen |
| Power Supply | AC 100~240V 50/60Hz |
| Power Consumption | 20W |
