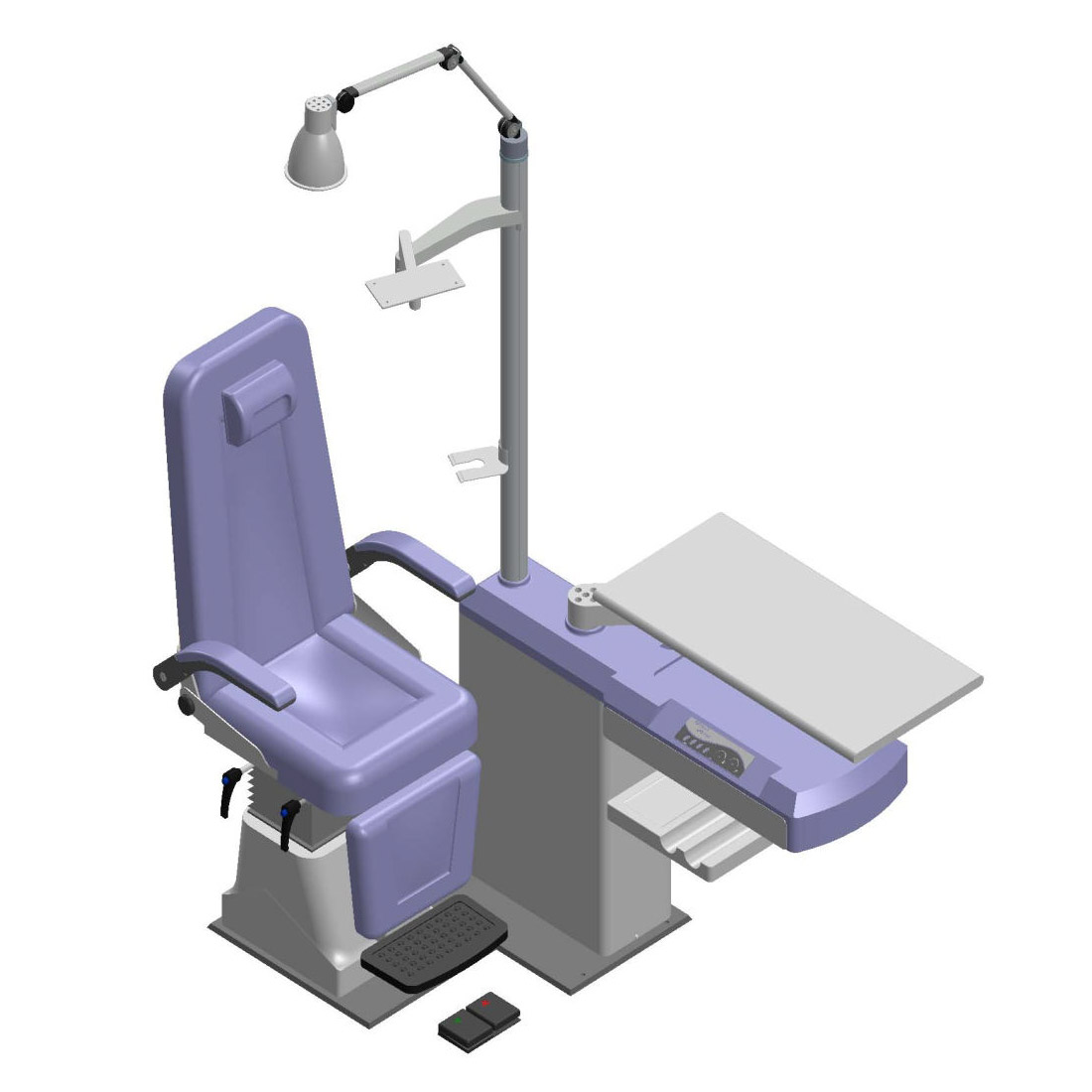

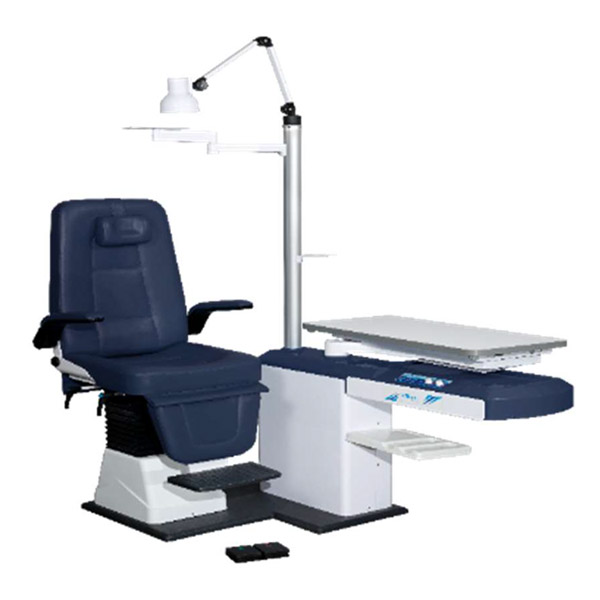

Neotech OU-2001
Ophthalmic Refraction Unit
Or please call FAISAL: 079 242 2817 or AHMED: 082 414 1472
Description
Click here to view the pdf brochure
Click here to view the pdf catalogue
STITCH LESS INTEGRATED FOAM YOU CANNOT GET DIRTY
- New stain proof material can repel virtually most of the liquids to maintain hygenic.
- New material can handle abuse and stains and keeps the chair like a new for long time.
- New material makes it more slim, spacious and comfortable.
- It also helps in easy ingress and egress.
SPECIALITIES
- Need-based, highly economical combination unit.
- Maximum operative functionality; minimum space consumption.
- Comprehensive, easy-to-use console panel control with memo key.
- 165-degree reclining, gas spring-driven chair.
- Smooth, CE-marked German DC motor-driven elevation.
- Sliding table with space for two instruments.
- Holder for hand instruments.
- Dust-free, enclosed Trial Lens Rack with straight, unobtrusive, in & out sliding movement.
- Sturdy Lamp Pole to support multi-instrument mounting.
- Cross-integrated Chair Raising System & Sliding table Top.
- Comfortable Polyurethane seat.
- Moulded plastic-covered base area.
- Broad, square format platform for stable mounting & jerk-free perforrnance.
CHAIR
- Fully flexible, rotating recliner chair
- Silent, CE-marked, German DC motor-driven, up & down movements and inclination, and Zero Position Memory
- Adjustable footrest, which can be fully raised to sleeping position
- Foot Switch for fluid up / down movement control
- Comfortable polyurethane-filled Seat
- Full movement control from back rest panel.
Specifications
| Min. height Chair | 550 mm +- 10 mm |
| Max. Height Chair | 750 mm |
| Back rest Movement | Manual |
| Floor to Sliding Arm Height | 875 mm |
| Pole Height | 1100 mm |
| Max Area Chair unit | 2390 x 1250 mm |
| Rotation of Chair | 180 Degree |
| Up & Down Movement Stroke | 200 mm |
| Max Load carry | 150 Kg |
| Power | 230 v 50/60 HZ |
| Total Weight | 250 Kg |
| Floor To Over Head Lamp Height | 2180 mm |
