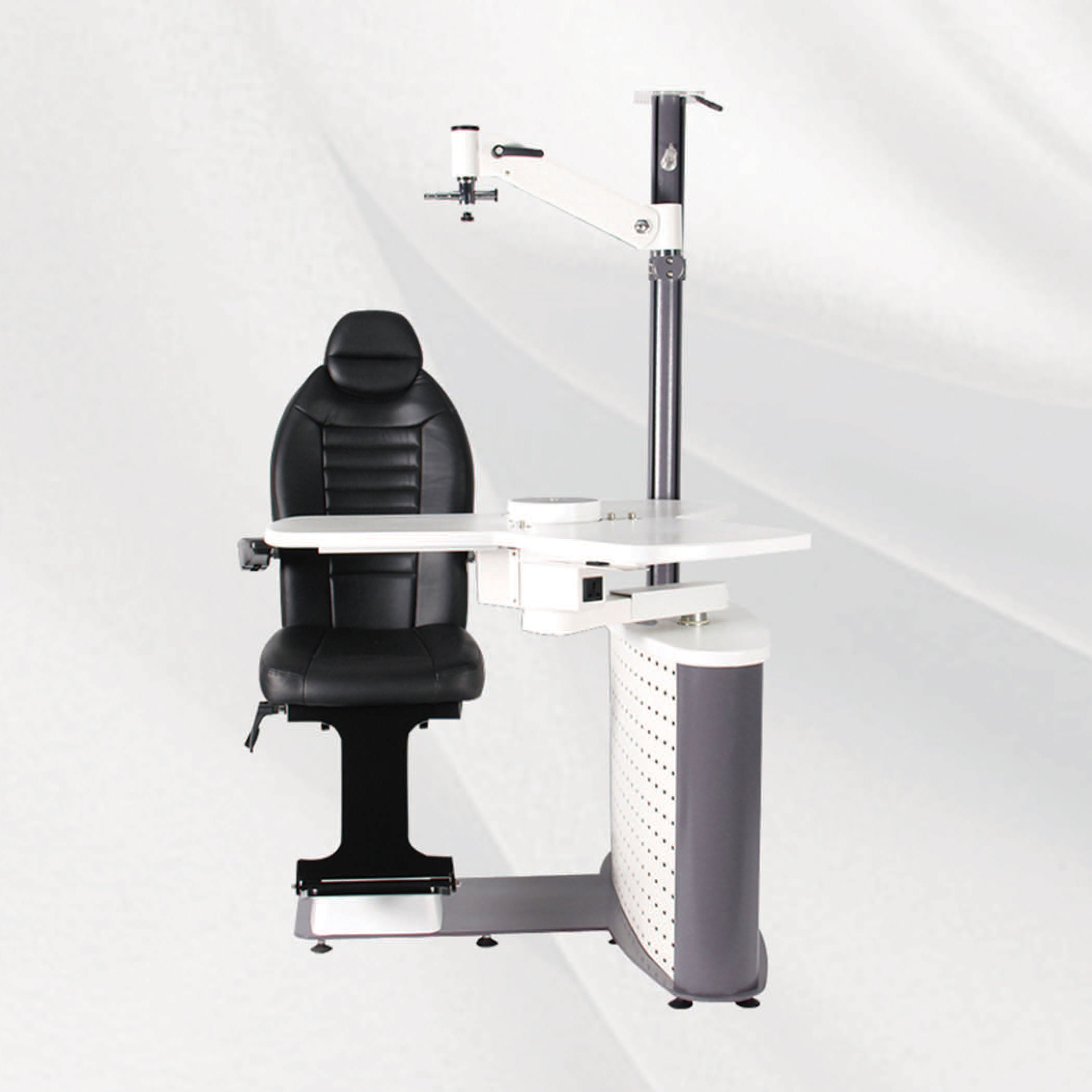

CT-450S Chair and Stand Unit

Click here to view the pdf catalogue

Simple operation interface provides with accurate operation experience.

Improved hand-operated phoropter arm is more flexible, the hand feeling of locking and positioning is better.

Features

• Luxurious design and graceful structure, The Y shape table is designed for saving space , it can hold three instruments
• Hand-operated phoropter arm can swing up and down, left and right.
• Reclining Chair can smoothly lift up and down, forward and backward with low noise.

Specification

Unit size: 1100×800×2100mm
Table Size: 890×405mm
Table rotation range: 90°
Table movable range: 335mm
Swing arm oscillation angle: +35°
Chair rotation range: 60°
Chair up and down range: 510-600mm
Chair loading ability: 200-250kg
Chair backrest obliquity: 160°
Lamp: Halogen (24V, 3W)
Electric Voltage: AC220V/110V 50/60HZ
Weight: 200kg
