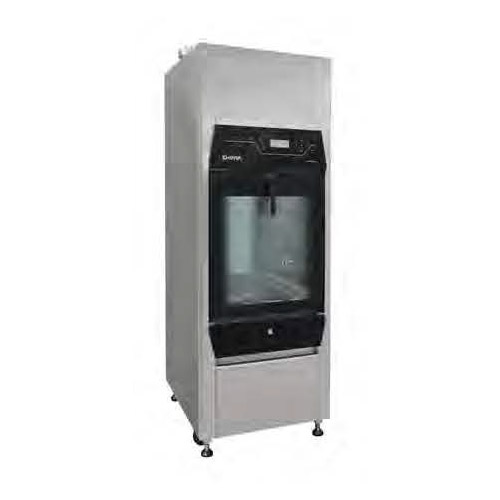

Shinva Washer-Disinfector Rapid-M-320

Click here to view the pdf catalogue

Introduction

Rapid-M-320 is an economic manual door washer-disinfector that researched and developed according to requirements of smaller hospitals or institution. Its function and washing effective is equal With Rapid-A-520. It is also can be used for disinfection of surgical instruments, wares, medical trays and plates, anesthesia instruments and corrugated hoses in hospital CSSD or operating room.

Product features

• Door structure
  Rapid-M-320 adopts double pull-down door structure. After opening the door, it can be regarded as a working platform for loading the washing rack and items. The double doors are interlocked and have self-lock function.
• Strong glass window
  Three layers tempered glass window with excellent sealing ensures the security, insulation and easily observing during washing process.
• Operation System
  LCD display screen can shows all the temperature, pressure. time, process stage and parameters. Easily operation by touch button on the panel. SIEMENS PLC ensures the machine intelligent running and control. Built-in printer can automatically record the temperature. pressure, time. graph and AO value.
• A variety of programs
  11 preset programs and 15 user-defined programs which can be edited according to user requirements
• Outstanding loading capacity
  12 DIN trays per cycle in four layers.
