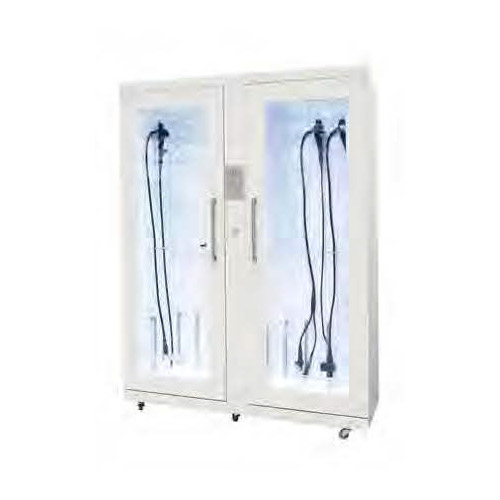

Shinva Center-GZ Endoscope Storage Cabinet

Click here to view the pdf catalogue

Introduction

Center-GZ series endoscope storage cabinet is designed and developed according to the standard of Flexible Endoscope Disinfection Technical Specification and the factual condition of flexible endoscope storage all over the world. The external material is carbon steel. the chamber seal is excellent. The endoscopes are hung vertically in chamber. Built-in automatic control of ultraviolet ray. Recirculating air disinfection and illumination.

Center-GZ1 could store 6 endoscopes and Center-GZ2 could store 12 endoscopes.

Product Features

• The material of chamber is made up of ABS and PMMA acrylic special composite and processed by special production process. Blister forming, smooth surface, easy clean without bacteria residue.
• Automatic Digital Tube Control, Center-GZ2 is equipped with a key switch control button.
• Transparent acrylic carbon steel door, ensuring good observation of chamber condition.
• Double circulation axial flow fan, guaranteeing good storage effect.
• The form of seal is magnetic seal. Tight seal without any gap and isolation Air from chamber.
• Vertical suspension system, Center-GZ1 could store 6 endoscopes and Center-GZ2 could store 12 endoscopes.
• Three layers, including top position, middle position and bottom position, locate endoscopes to realize protection for endoscopes.
• LED cold light illuminator offers safe and reliable illumination without producing heat.

Performance Features

• Storage Effectiveness: Seal Storage ensures the chamber is isolated from outside arr. guaranteeing the outside air cannot enter chamber.
• Storage Mode: UV sterilization and circulation ventilation can be completed by standard cycle. The time of UV sterilization and circulation ventilation can be set separately. The time can be stopped according to your setting and the energy Is saved.
• Storage Capacity: Single door storage cabinet could store 6 sets of endoscopes and double doors storage cabinet could 12 sets of endoscopes.
